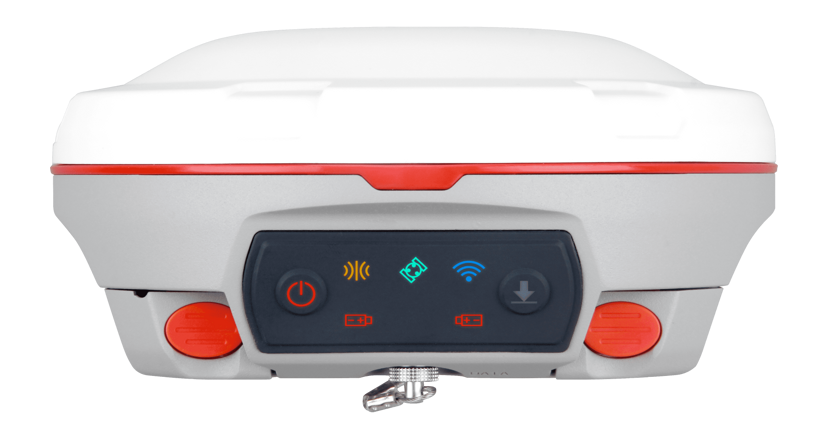

T30 IMU GNSS Receiver

With built-in IMU engine, full-constellation tracking capability, 4G/WiFi/Bluetooth® connection and easy survey workflow with Android-based Survey Master Software, the T30 IMU GNSS receiver is an ideal choice for your survey task.

Features

  • GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b/AltBOC, SBAS, QZSS, IRNSS

  • BeiDou Global Signal B1C, B2a

  • WIFI/UHF/4G Module

  • Built-in IMU supports tilt compensation up to 60°

  • Two 3400 mAh hot swap Batteries

  • Low Power Consumption

  • Support PPP and L-Band

  • Support Long Baseline E-RTK

Full-constellation tracking

The T30 IMU receiver tracks 574 channels for all current and future satellites signals, including GPS, GLONASS, Beidou, Beidou global, Galileo, SBAS and L-Band.

IMU

With built-in and calibration-free IMU, T30 IMU receiver supports up to 60° tilt survey within the accuracy of 2.5cm, providing more convenient and reliable survey work.

Intuitive workflow

The T30 IMU receiver provides intuitive and easy survey workflow via Survey Master Wizard function, improving efficiency for both beginners and professional surveyors.

Technical specifications

Signal Tracking
Channels 574
GPS L1 C/A, L2C, L2P, L5
BeiDou B1, B2, B3
BeiDou Global Signal B1C, B2a
GLONASS L1 C/A, L1P, L2 C/A, L2P,
Galileo E1, E5a, E5b, AltBOC
QZSS, IRNSS1
SBAS WAAS, EGNOS, MSAS, GAGAN
L-Band2
Performance Specifications
Cold start <50s
Warm start <30s
Hot start <15s
Initialization time <10s
Signal re-acquisition <1.5s
Initialization reliability Typically>99.9%
Positioning Specifications
Static and Fast Static 2.5 mm + 0.5 ppm Horizontal
5 mm + 0.5 ppm Vertical
Long Observations
Static
3 mm + 0.1 ppm Horizontal
3.5 mm + 0.4 ppm Vertical
Real Time
Kinematic
8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
E-RTK
(<100km)3
0.2 m + 1 ppm Horizontal
0.4 m + 1 ppm Vertical
DGPS <0.4 m RMS
SBAS 1 m 3D RMS
Standalone 1.5m 3D RMS
PPP 10cm Horizontal and
20cm Vertical
Communications
Communication port 1 x 7 pin lemo port (Combined Serial and USB function)
Baud rates up to 921600bps for serial
UHF modem Tx/Rx with full frequency range from 410-470 MHz
Transmit power: 0.5-2W adjustable
Range: 1-5km
WIFI/4G modem 4G Bands: 800/900/1800/2100/2600 MHz
3G Bands: 900/2100 MHz
2G Bands: 900/1800 MHz
Support GSM, Point to Point/Points and NTRIP
Positioning data outputs 1HZ, 2HZ, 5HZ, 10HZ, 20HZ
Indicating light 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data)
Bluetooth® V 4.0 protocol, compatible with Windows OS and Android OS
Tilt Up to 60°tilt with 2.5 cm accuracy
Data Format
Data inputs/outputs Correction data I/O: RTCM2.x, 3.x,CMR(GPS only), CMR+(GPS only)
Position data outputs

ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK
ComNav Binary update to 20 Hz

Physical
Size(W×H) 15.5 cm × 7.3 cm
Weight 1.2 kg with two batteries
Environmental
Operating temperature -40 °C to +65 °C (40°F to +149°F)
Storage, temperature -40 °C to +85°C (40°F to +185°F)
Humidity 100% non-condensing
Waterproof and dust proof IP67 protected from temporary immersion to depth of 1 meter, floats
Shock Designed to Survive a 2 m drop onto concrete
Electrical
Input Voltage 5-27 VDC
Power consumption 3.1 W(3 constellations)
Li-ion battery capacity 2×2000 mAh, Up to 9 hours typically
Memory 8 GB internal memory (16 GB and 32 GB is optional)
Software
Survey Master Android-based data collection software
Carlson SurvCE field data collection software (optional)
MicroSurvey FieldGenius field data collection software (optional)
Signal Tracking
Channels 572
GPS L1, L2, L2C, L5
BeiDou B1, B2, B3
GLONASS L1, L2
Galileo E1, E5a, E5b
QZSS Reserved
SBAS WAAS, EGNOS, MSAS, GAGAN
Performance Specifications
Cold start <50s
Warm start <30s
Hot start <15s
Initialization time 10s
Signal re-acquisition <1.5s
Initialization reliability Typically>99.9%
Positioning Specifications
Post Processing Static Horizontal: 2.5 mm + 1 ppm RMS
Vertical: 5 mm + 1 ppm RMS
Real Time Kinematic Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
E-RTK (<100km) Horizontal: 0.2 m + 1 ppm RMS
Vertical: 0.4 m + 1 ppm RMS
DGPS < 0.4 m RMS
SBAS 1 m 3D RMS
Standalone 1.5 m 3D RMS
Communications
Communication port 1 x 7 pin lemo port (Combined Serial and USB function)
Baud rates up to 921600bps for serial
Radio modem Tx/Rx with full frequency range from 410-470 MHz
Transmit power: 0.5-2W adjustable
Range: 1-5km
WIFI/4G modem 4G Bands: 800/900/1800/2100/2600 MHz 3G Bands: 900/2100 MHz
2G Bands: 900/1800 MHz
Support GSM, Point to Point/Points and NTRIP
Positioning data outputs 1HZ, 2HZ, 5HZ, 10HZ, 20HZ
Indicating light 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data)
Bluetooth® V 4.0 protocol, compatible with Windows OS and Android OS
Sensor Tilt sensor
Data Format
Data inputs/outputs Correction data I/O: RTCM2.x, 3.x,CMR(GPS only), CMR+(GPS only)
Position data outputs ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL
ComNav Binary update to 20Hz
Physical
Size(W×H) 15.8cm×7.5cm
Weight 0.95kg(include two batteries)
Environmental
Operating temperature -40 °C to +65 °C (40°F to +149°F)
Storage, temperature -40 °C to +85°C (40°F to +185°F)
Humidity 100% non-condensing
Waterproof and dust proof IP67 protected from temporary immersion to depth of 1 meter, floats
Shock Survives a 2-meter drop on to concrete
Electrical
Input Voltage 5-27 VDC
Power consumption 3.1 W(3 constellations)
Li-ion battery capacity 2×2000 mAh, Up to 9 hours typically
Memory 8 GB internal memory (16 GB and 32 GB is optional)
Software
CGSurvey ComNav’s field data collection software
Survey Master ComNav’s Android-based field data collection software
FieldGenius (optional) MicroSurvey’s FieldGenius field data collection software
SurvCE (optional) Carlson’s field data collection software
