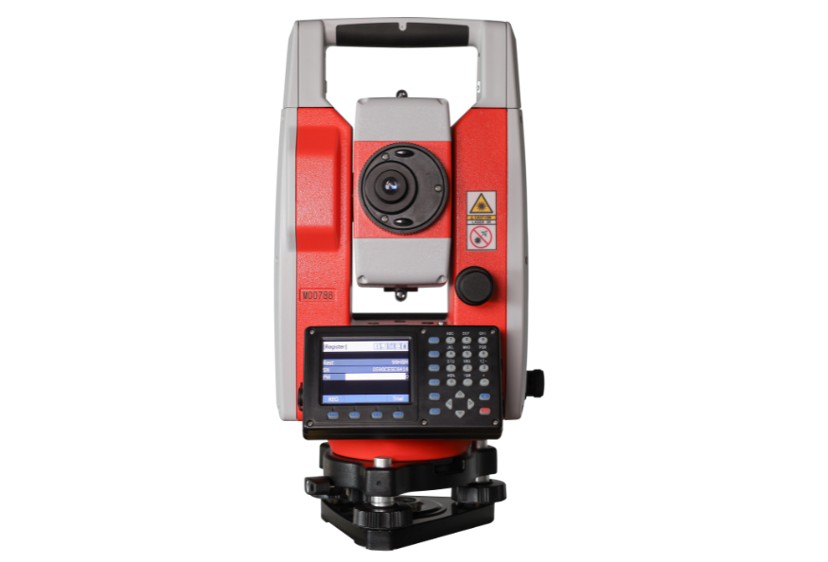

TS-C200 Total Station
Other
Overview
The TS-C200 is a high-end manual total station, enabling you to carry out high-demand survey tasks even in harsh environment. With its higher accuracy, longer range and greater versatility, you can solve daily professional challenges and tasks for growing within surveying and inspection, building construction, civil engineering and other applications.
Product Video
Specifications
Measurement
| Distance Measurement Range | 5000m (Prism), 1500m (Non-Prism) |
| Distance Measurement Accuracy | 2mm + 2ppm (Prism), 3mm + 2ppm (Non-Prism) |
| Measuring Time | Precise < 0.3s, Tracking < 0.1s |
| Laser | Class 3R laser |
| Angular Measurement Reading System | Absolute Encoding |
| Circle Diameter | 79mm |
| Minimum Increment | 0.1″/1″/5″/10″ optional |
| Accuracy | 2″ |
| Detection Method | Horizontal: Dual; Vertical: Dual |
System
| Size | 20cm × 19cm × 35cm |
| Weight | 6.0kg |
| Water and dust protection | IP65 |
| Tilt Sensor | Dual Axis Liquid-Electric (working range: 4′/6′ optional, accuracy: 1′′) |
| Atmosphere Correction | Manual Input, Auto Correction |
| Prism Constant | Manual Input, Auto Correction |
| Display Type | 320 × 240 Dot matrix high-definition high-brightness display |
| Keyboard | Alphanumeric |
| Digital Display | Maximum: 99999999.9999 Minimum: 0.1mm (4 decimal places optional) |
| Battery Type | Li-battery, 3100mAh |
| Voltage | 7.4V DC |
| Battery Life | 8 hours |
Structure
| Image | Erect |
| Tube Length | 154mm |
| Effective Aperture | 45mm |
| Magnification | 30X |
| Field of View | 1°30′ |
| Resolving Power | 3′′ |
| Minimum Focus Distance | 1.2m |
| Laser Plummet Laser Brightness Level | 3 levels adjustable |
| Circular Vial | 8′/2mm |
| Plate Vial | 30′′/2mm |
Communications
| USB | USB port |
| Bluetooth | Yes |
| SD Card | Yes |
