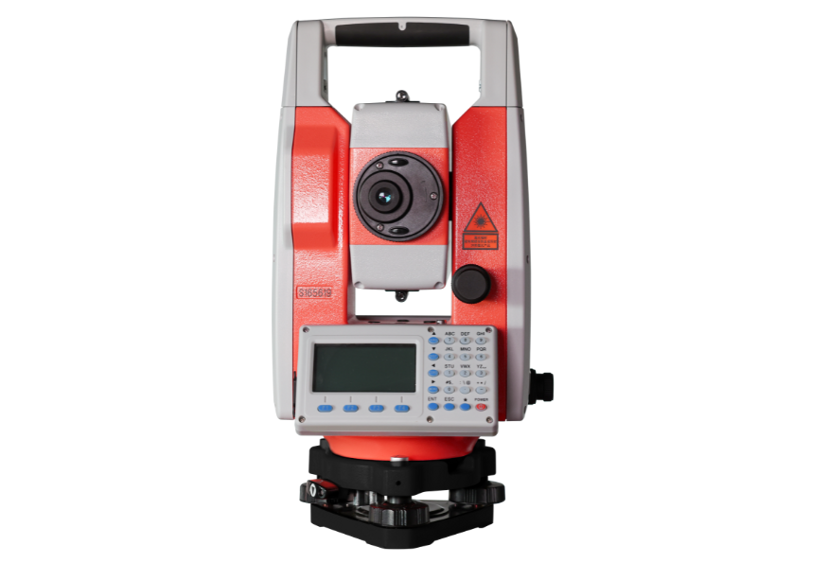

TS-C100 Total Station
Other
Overview
With prism-free measurement technology, the TS-C100 total station can tackle with all kinds tasks even in harsh environment with high speed and high efficiency. Featured programs such as coordinate measurement, angle measurement, traverse measurement, road design and area calculation, it's your most cost-effective choice for surveying and inspections, building construction and civil engineering and other applications.
Product Video
Specifications
Measurement
| Distance Measurement Range | 5000m (Prism) 1000m (Non-Prism) |
| Distance Measurement Accuracy | 2mm + 2ppm (Prism) 3mm + 2ppm (Non-Prism) |
| Measuring Time | Precise < 0.3s Tracking < 0.1s |
| Laser | Class 3R laser |
| Angular Measurement Reading System | Absolute Encoding |
| Circle Diameter | 79mm |
| Minimum Increment | 0.1′′ / 1′′ / 5′′ / 10′′ (optional) |
| Accuracy | 2′′ |
| Detection Method | Horizontal: Dual Vertical: Dual |
System
| Size | 20cm × 19cm × 33cm |
| Weight | 5.5kg |
| Tilt Sensor | Dual (working range: ±3′, accuracy: 1′′) |
| Atmosphere Correction | Manual Input, Auto Correction |
| Prism Constant | Manual Input, Auto Correction |
| Display Type | LCD 6 lines |
| Keyboard | Alphanumeric |
| Digital Display | Maximum: 99999999.9999 Minimum: 0.1mm (4 decimal places optional) |
| Battery Type | Li-battery, 3100mAH |
| Voltage | 7.4V DC |
| Battery Life | 8h |
Structure
| Image | Erect |
| Tube Length | 154mm |
| Effective Aperture | 45mm |
| Magnification | 30X |
| Field of View | 1°30′ |
| Resolving Power | 3′′ |
| Minimum Focus Distance | 1.2m |
| Laser Plummet Laser Brightness Level | 5 levels adjustable |
| Circular Vial | 8′/2mm |
| Plate Vial | 30′′/2mm |
Communications
| USB | USB port |
| Bluetooth | Yes |
