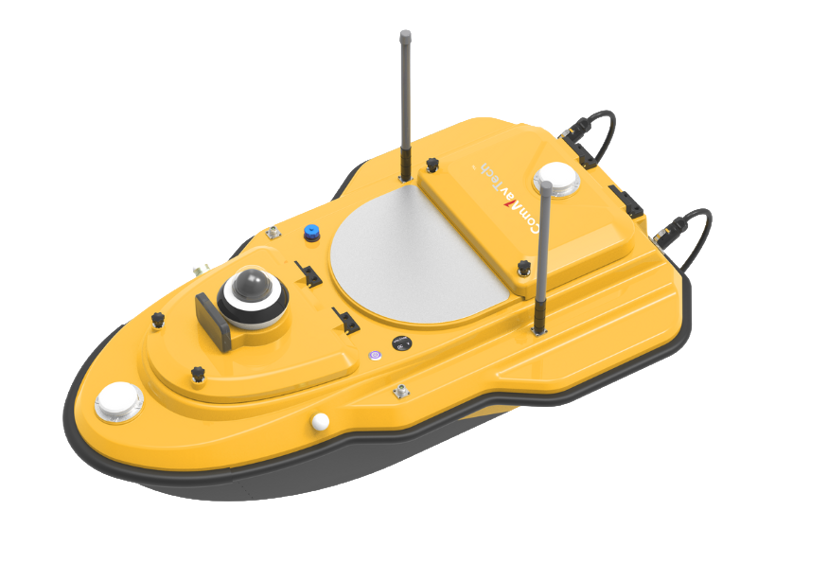

SV600 Unmanned Surface Vessel
Other
Overview
The SV600 is an advanced Unmanned Surface Vessel (USV) specifically engineered for hydrographic survey. Offering remote control capabilities, it seamlessly integrates adaptive water flow straight-line and hovering technology for enhancing efficiency.
Specifications
Vessel Specifications
| Hull Dimension (L × W × H) | 1.18m x 0.7m x 0.39m |
| Material | Carbon Fiber Composite Material |
| Hull Shape | Trimaran |
| Water Proof & Dust Proof | IP67 |
| Weight Without Battery | 24kg |
| Maximum Payload | 35kg |
| Draft | 9cm |
| Moon Pole | 23cm in Diameter (Customized) |
| Anti-wave & Wind | 3rd Wind Level & 2nd Wave Level |
| Equipable Devices | ADCP, Water Sampling Equipment, Water Miniaturized Multi-beam Echo Sounder |
| Security Configuration | Shoal Automatic Astern, Millimeter-wave Radar Automatic |
Power
| Battery Capacity | 33V/50Ah, Li-ion Battery |
| Propeller Type | Brushless DC |
| Direction Control | Veering without Steering Engine |
| Motor Power | 850W (Single Motor) |
| Maximum Speed | 3.5 knots (7 m/s) |
| Battery Endurance | 5.5h @ 2 m/s (Single Battery) (Longer Battery Life Optional) |
Communication
| Transmission Range | 2.5 km (Network Bridge) Unlimited (4G Mode) |
| SIM Card Slot | Support Nano & eSIM |
| Video Communication | 4G, Network Bridge |
| Data Communication | 4G, Radio |
| R/C Communication | 4G, Network Bridge |
| Data Storage | Multi-channel Storage (Remote Controller, Vessel, Server) |
Positioning
| Signal Tracking | GPS: L1C/A, L2C, L2P BDS: B1I, B2I, B3I, B2b GLONASS: G1,G2 Galileo: E1, E5b QZSS: L1C/A, L2C SBAS: L1C/A L-Band |
| RTK Initialization Time | <5s |
| Velocity Accuracy | 0.02m/s |
| Single Point Position (RMS) | ≤ 1.5m (Horizontal) ≤ 2.5m (Vertical) |
| PPP Accuracy | ≤ 10cm |
| RTK Positioning Accuracy | ±8mm+1ppm (Horizontal) ±15mm+1ppm (Vertical) |
| Heading Accuracy | 0.15° @1m Baseline |
| Roll / Pitch Accuracy | 0.25° @1m Baseline |
| IMU Update Rate | 200Hz |
Single Beam Echo Sounder
| Weight | 0.75 kg |
| Sounding Range | 0.3 - 100m / 300ft |
| Sounding Accuracy | ±0.01m ± 0.1% D (D is the depth of water) |
| Resolution | 0.01m |
| Frequency | 200 kHz |
| Beam Angle | 7° |
| Supply Voltage | 9-15V DC, Less than 25w, 110~265V AC (Optional) |
| Water Proof & Dust Proof | IP67 |
