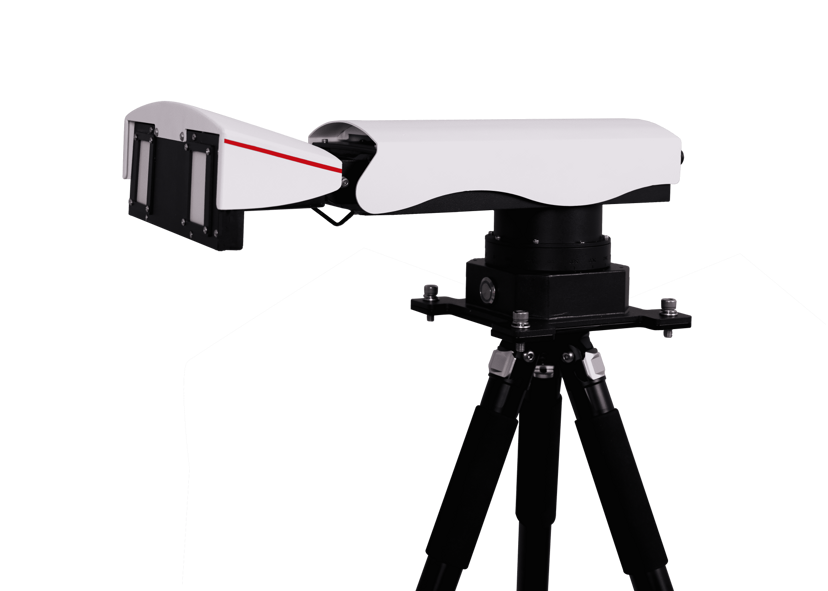

MS-SAR1000 Universal Slope Monitoring Radar
Other
Overview
The Universal Slope Monitoring Radar MS-SAR1000 is based on Synthetic Aperture Radar (SAR) imaging technology and interferometric/differential interferometric techniques. It is specifically designed for monitoring and alert of geohazard risks such as landslides, collapses, and cave-ins. The radar delivers 360° sub-millimeter deformation measurement and 24/7 unmanned early warnings for geohazard risks.
Specifications
Physical
| Weight | ≤5kg |
| Maximum Size of Radar Host | ≤0.6m |
| Working Temperature | -40℃~+65℃ |
| Water- & Dustproof | IP65 |
| Windproof | ≥12 Level |
| Power Consumption | ≤15W |
| Front-End Calculation | Host adopts edge-front calculation completing all processing internally without the need for external servers |
Communication
| 4G | Built-in |
| 5G | Built-in |
| Mobile Communication | Y |
| WAN Communication | Y |
| Satellite Communication | Y |
| Local Device Networking and Interconnection | Support |
Power Supply
| Mains | Support |
| Solar | Support |
| Batteries | Support |
| Overvoltage Protection | Y |
| Undervoltage Protection | Y |
Radar Sensor
| Working Frequency Band | Ku Band |
| Operating Range | ≥800m |
| Horizontal Coverage | 360° (Horizontal, or specified sector) |
| Deformation Accuracy | ≤0.5mm (Any angle within 360° azimuth) |
| Distance Resolution | ≤0.3m |
| Angular Resolution | ≤9mrad |
| Data Acquisition Period | ≤1min |
| Data Upload Rate | 1min~24h (Configurable) |
| Maximum Altitude | ≥6000m |
