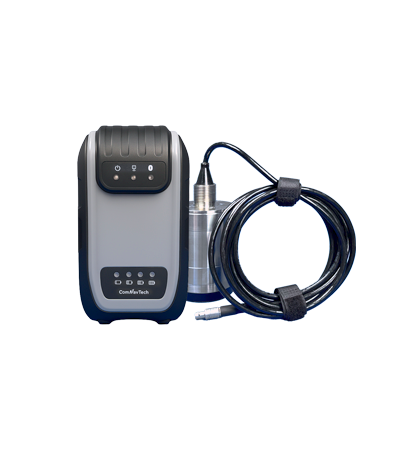

HYD10 Portable Echo Sounder
Other
Overview
The HYD10 is a new-generation portable echo sounder developed by ComNav. Compact in design, it enables automatic depth measurement. With advanced algorithms and high signal-to-noise circuit design, it supports RTK data input and runs on a Linux-based industrial platform with a rugged and stable structure to ensure reliable performance.
Specifications
Physical
| Dimensions | Main Unit: 137x72x50 mm, Transducer: D70 mm x H105 mm |
| Device Weight | 1.2kg |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -20°C to +60°C |
| Buttons / Keypad | Power Button |
| Material | 316 Stainless Steel |
| Dustproof & Waterproof | IP67 |
| Power Consumption | 5W |
| Lithium Battery | 3400mAh, operating time 8 hours |
| External Power Supply | DC9~28V |
Performance
| Operating Frequency | 200kHz |
| Maximum Sampling Rate | 30Hz |
| Depth Range | 0.3-200m |
| Depth Accuracy | ±1cm + 0.1% h (h: Water Depth) |
| Resolution | 1cm |
| Sound Velocity Adjustment Range | 1300m/s-1700m/s |
| Beam Angle | 6° |
| Maximum Transmit Power | 300W |
Communication
| Data Type | NMEA: SDPT/SDDBT |
| Operating System | Linux |
| Interface / Port | RS232 / Transducer Interface |
| Bluetooth | BT5.0, backward compatible with BT2.x |
