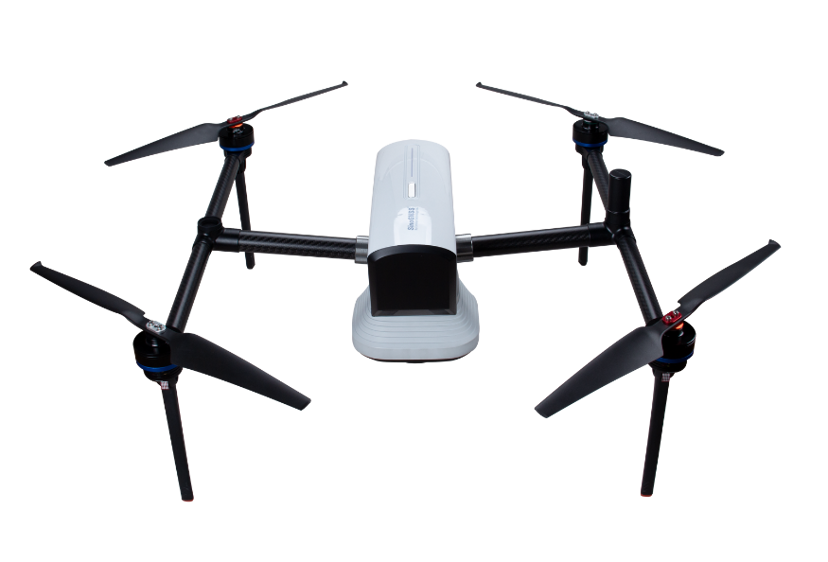

E300 RTK Drone
Other
Overview
The high precision GNSS K8 module empowered to RTK/PPK technology. On the one side, E300 can provide centimeter-level positioning results without GCPs. On the other side, RTK/PPK are the dual backup, one as a failsafe for another, to ensures the acquisition of data.
Specifications
General Specifications
| Drone type | Quadcopter with 4 propellers |
| Work mode | RTK / PPK |
| Take-off & landing | Automatic |
| Max flight time | 60 min, without payload 50 min, with 1kg payload |
| Measurement radius | 10 km |
| Assembly time | Start < 1 min / finish < 1 min |
Flight Specifications
| Max level flight speed | 20 m/s |
| Max climb speed | 6 m/s |
| Max cruise speed | 15 m/s |
| Max flight altitude | 1000 m |
| Wind resistance | 17.1 m/sec (level 7) |
GNSS Specifications
| GPS | L1 C/A, L2C, L2P, L5 |
| BeiDou | B1, B2, B3 |
| BeiDou Global | B1C, B2a |
| GLONASS | L1 C/A, L1P, L2 C/A, L2P |
| Galileo | E1, E5a, E5b, E5 AltBOC, E6 |
| QZSS | L1C, L2, L5, L1C/A |
| RTK Accuracy | 8 mm + 1 ppm Horizontal 15 mm + 1 ppm Vertical |
| PPK Accuracy | 8 mm + 1 ppm Horizontal 15 mm + 1 ppm Vertical |
Physical Specifications
| Size | 520 × 520 × 240 mm, unfolded 520 × 160 × 240 mm, folded |
| Working temperature | -30°C ~ 50°C |
| Weight without payload | 1.8 kg |
| Payload | Up to 3 kg |
| Max take-off weight | 6.5 kg |
| Size of box | 580 × 360 × 200 mm |
