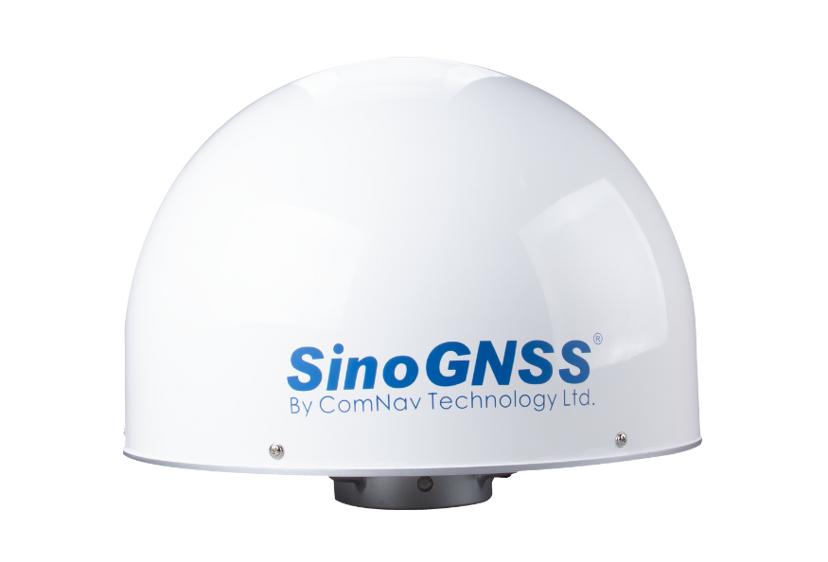

AT600 Choke Ring Antenna
Other
Overview
The AT600 can track all existing and planned satellite constellations, which include GPS, GLONASS, BeiDou, BeiDou Global, Galileo, IRNSS, QZSS, SBAS and L-Band. Equipped with an IP67 rating, the AT600 is built to endure challenging environmental conditions, ensuring water and dust resistance. The AT600's sub-millimeter-level phase center error enhances measurement accuracy and stability, making it a reliable tool for land surveying, precision agriculture, deformation monitoring, CORS, etc.
Specifications
Antenna
| BeiDou | B1, B2, B3 |
| BeiDou Global | B1C, B2a |
| GPS | L1, L2, L5 |
| GLONASS | L1, L2 |
| Galileo | E1, E2, E5a, E5b, E6 |
| IRNSS, QZSS, SBAS, and L-Band | Support |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio (90°) | ≤ 2dB |
LNA
| LNA Gain | ≥ 50dB |
| Noise Figure | ≤ 1.8dB |
| VSWR Output | ≤ 2.0 |
| Operation Voltage | 3.3 - 12VDC |
| Operation Current | ≤ 60mA |
| Group Delay | < 5ns |
| Passband Ripple | ±1.5dB |
| Gain at Zenith | 5dBi |
| Phase Center Offset | ≤ 1.5mm |
Physical
| Dimension | Φ379.5×296.5mm |
| Connector | TNC-K |
| Weight | < 8.5kg |
Environmental
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 95% No-condensing |
| Water and Dust Proof | IP67 |
| Drop | Survive from 1-meter drop |
| Calibration | IGS, NGS |
