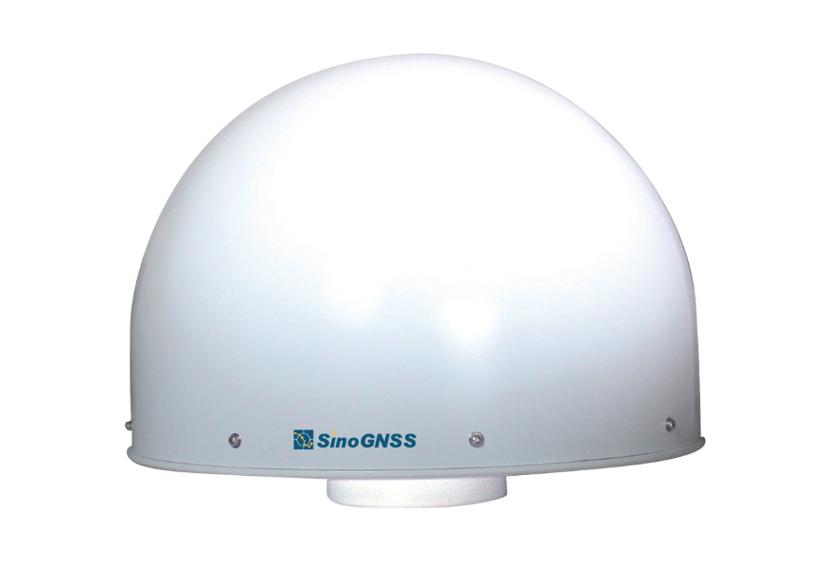

AT500 Choke Ring Antenna
Other
Overview
The AT500 features a superior waterproof and dustproof design with an IP67 rating, and it can withstand drops from a height of 1 meter. The AT500 excels with its low noise amplifier, high gain, and sub-millimeter level phase center error, providing outstanding stability and repeatability. It can track all existing and planned satellite constellations, including GPS, GLONASS, BeiDou, BeiDou Global, Galileo, IRNSS, QZSS, SBAS and L-Band.
Specifications
Antenna
| GPS | L1, L2, L5 |
| GLONASS | L1, L2 |
| BeiDou | B1, B2, B3 |
| Galileo | E1, E5a, E5b, E6 |
| SBAS and L-Band | Support |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio (90°) | ≤ 3dB |
LNA
| LNA Gain | 50dB ± 2dB |
| Noise Figure | ≤ 2dB |
| VSWR Output | ≤ 2.0 |
| Operation Voltage | 3.3 - 12VDC |
| Operation Current | ≤ 55mA |
| Group Delay | < 5ns |
| Passband Ripple | ± 2dB |
| Gain at Zenith | 7dBi |
| Phase Center Offset | ± 1mm |
Physical
| Dimension | Φ379×311 mm |
| Connector | TNC Female connector |
| Weight | 6.9kg |
Environmental
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 95% No-condensing |
| Water and Dust Proof | IP67 |
| Drop | Survive from 1 meter drop |
| Calibration | IGS, NGS |
