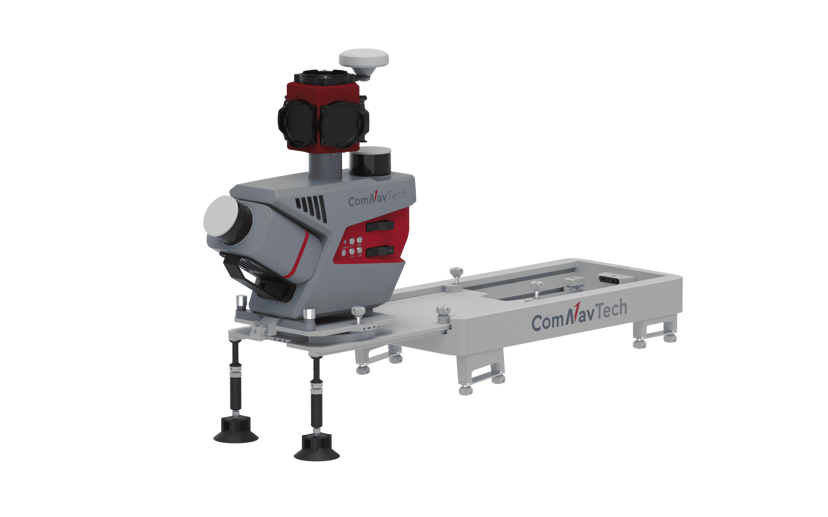

ML300 Mobile Laser Scanning System
Laser Scanners
Overview
The ML300 affordable mobile laser scanning (MLS) system is equipped with two LiDAR sensors (one tilted at a 30-degree angle and one positioned horizontally) and a Ladybug5+ panoramic camera, enabling efficient 3D mapping of roads and surrounding environments. Paired with LiDAR360MLS software, it enables a one-stop data processing for applications such as road asset extraction, urban power distribution line analysis, urban forestry management, smart transportation, and more.
Product Video
Specifications
Physical
| Dimensions | 508.5×263×531.5 mm |
| Weight | 14 kg |
| Roof Rock Dimensions | 730×350×95 mm |
| Roof Rock Weight | 17.5 kg |
| Operating Time | ≥6 h |
| Port | LAN, ODO |
| Storage | 1 TB×2 |
| Battery Capacity | 6000 mAh×6 |
| Operating Temperature | -10℃~ 50℃ |
| Waterproof and Dustproof | IP65 |
| Power Consumption (Typical) | 75 W |
| Power Consumption (Max) | 125 W |
| Power Supply Input Voltage | 24 V-DC |
| Interface Connection | Wi-Fi / Ethernet |
Performance
| Signal Tracking | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| IMU Data Frequency | 100 Hz |
| Position Accuracy (RMS 1ơ) | Horizontal: 0.01 m Roll / Pitch Accuracy (RMS 1ơ): 0.01° Vertical: 0.02 m Heading Accuracy (RMS 1ơ): 0.04° |
| Relative Accuracy | ≤2cm |
| Absolute Accuracy | ≤5 cm |
| Point Cloud Data Format | LAS, LAZ, LiData |
| Data Collection | Lidar Master |
LiDAR Sensor
| Laser | XT32M2X |
| Range Accuracy | ±1 |
| FOV (Vertical) | 40.3° (-20.8° to +19.5°) |
| FOV (Horizontal) | 360° |
| Scan Rate | 1,280,000 pts/s (Dual Return) |
| Detection Range | 0.5 to 300 m |
Camera
| Ladybug5+ | |
| Ladybug5+ Pixels | 30 MP (5 MP×6 Sensors) |
| Ladybug5+ Maximum Frame Rate | 10 FPS |
| Ladybug5+ Image Resolution | 8192×4096 |
| Ladybug5+ Sensor Type | CMOS |
| Ladybug5+ Trigger Mode | Time / Distance Trigger |
| Ladybug5+ Power Consumption | Maximum 13 W |
| Ladybug6 (Optional) | |
| Ladybug6 Pixels | 72 MP (12 MP×6 Sensors) |
| Ladybug6 Maximum Frame Rate | 5 FPS |
| Ladybug6 Image Resolution | 12288×6144 |
| Ladybug6 Sensor Type | CMOS |
| Ladybug6 Trigger Mode | Time / Distance Trigger |
| Ladybug6 Power Consumption | Maximum 13 W |
| Pavement / Front (Optional) | |
| Pavement / Front Pixels | 24 MP (12 MP×2 Sensors) |
| Pavement / Front Maximum Frame Rate | 5 FPS (4096×2160)/3 FPS (4096×3000) |
| Pavement / Front Image Resolution | 4096×3000 |
| Pavement / Front Sensor Type | CMOS |
| Pavement / Front Trigger Mode | Time / Distance Trigger |
| Pavement / Front Power Consumption | 3.0W @ 12 VDC |
