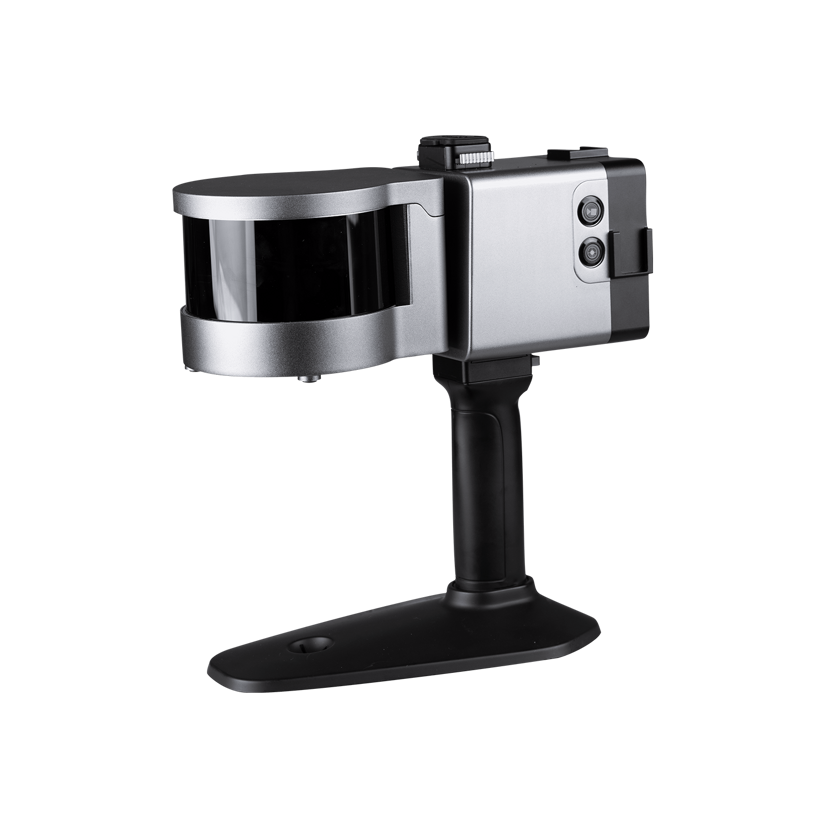

LS300 Laser Scanner
Laser Scanners
Overview
The LS300 Laser Scanner uses SLAM technology (simultaneous localization and mapping), which is real-time positioning and mapping technology. It does not rely on GNSS positioning, and performs self positioning and incremental 3D mapping in unknown environments, including indoors and outdoors. Its lightweight design makes measurement work so easy. With synchronous data acquisition, simply walking around can complete the information data collection. ComNav Technology is committed to providing user-centered 3D laser mobile scanner measurement system product solutions, bringing users a better work experience.
Product Video
Specifications
Physical
| Weight | 1.35 kg (handheld parts) |
| Working Temperature | -35°C~+60°C |
| Storage Temperature | -40°C~+85°C |
| SSD | 500GB (expandable) |
| IP Code | IP54 waterproof and dustproof |
Performance
| Relative Accuracy | 1cm (peak) |
| Scanning Range | 120 meters |
| FOV (Field of Scan) | 360° x 285° |
| Scanning Speed | 320,000 Points per second |
| Scan Positioning | SLAM (No need for GPS) |
| Solution Method | Hybrid algorithm |
| Live Preview | Mobile APP |
Laser
| No. of Laser Sensor | 1 |
| Safety Level | Class I |
| Laser Lines | 16-line |
Battery
| Type | Lithium-ion battery (hot swap) |
| Capacity | 98Wh/6.8Ah |
| Voltage | 14.4V |
| Battery Time | 4 hours |
| Charging Temperature | 0°C~+40°C |
| Operating Temperature | -20°C~+50°C |
