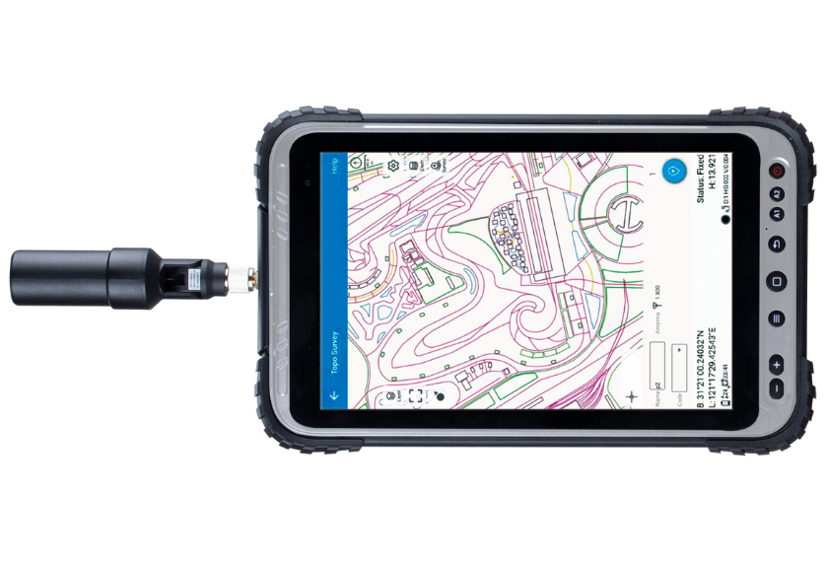

P8H Handheld
Handheld GNSS
Overview
Integrated High Precision GNSS Module and Antenna, P8H tablet provides an efficient experience for field users. With 8 inch sunlight readable screen, and powered by Android 12, the P8H GNSS tablet provides efficient experience for field users.
Product Video
Specifications
Performance
| Channels | 965 |
| Satellite Tracking | GPS: L1C/A, L2P, L2C, L5, L1C; BeiDou: B1l, B2l, B3l, B1C, B2a, B2b; GLONASS: L1, L2, L3; Galileo: E1, E5b, E5a, E6, E5 AItBOC; QZSS: L1C, L2, L5, L1C/A; SBAS: L1 |
| Single Baseline RTK | 8 mm +1 ppm Horizontal; 15 mm+1 ppm Vertical |
| Standalone | 1.5m 3D RMS |
| Post Processing | 2.5 mm +1 ppm Horizontal; 5 mm+1ppm Vertical |
Physical
| CPU | Qualcomm SDM4350 2.0GHz |
| Operating System | Android 12 |
| ROM | 128GB |
| RAM | 6GB |
| TF Card | Y |
| Rear Camera | 13M |
| Front Camera | 5M |
| Battery | 8000mAh |
| Battery Working Time | 10h |
| Size | 235mm*146mm*13mm |
| LCD | 8"HD screen 1280*800 500Nits (Sunlight readable) |
| Touch Panel | Capacitive screen, support glove/wet hand |
| Flash Light | Y |
| Microphone | Y |
| Speaker | Y |
| Weight | 630g |
| Voltage | 5V, 2A |
| Keypad | Power, Volume, F1, F2, Home, Menu, Return |
| Work Temperature | -20°C~ 60°C |
| Storage Temperature | -30°C~ 70°C |
| Waterproof & Dustproof | IP67 |
| Drop Test | Survive from a 1.2m drop |
| Humidity | 95% no condensation |
Communications
| WIFI | 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
| SIM Card | Dual SIM & Dual standby |
| Network | GSM: 850 / 900 / 1800 / 1900; EVDO: BC0; WCDMA: B1 / B2 / B5 / B8; TD-SCDMA: B34 / B39; TDD-LTE: B34 / B38 / B39 / B40 / B41; FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B20 / B28; 5G NR: N1 / N3 / N28 / N41 / N78 / N79 |
| Bluetooth | BT 5.1 |
| USB | Type C |
| External Interface | USB, UART, GPIO |
| Support Protocols | Ntrip |
Sensors
| NFC | Y |
| G Sensor | Y |
| Gyroscope | Y |
| Light Sensor | Y |
| Compass | Y |
| OTG | Y |
