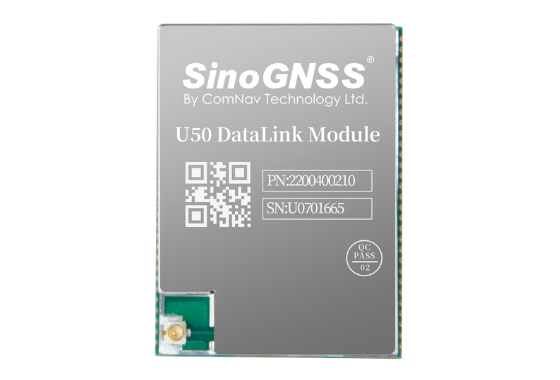

U50 Datalink Module
GNSS Receivers
Overview
The U50 datalink module is a RX/TX datalink module with the entire range of 410-470 MHz. With the surface-mounted design and small size, it is easy for GNSS related integration.
Specifications
General
| Frequency Range | 410-470 MHz |
| Channel Spacing | 12.5 kHz |
| Work Mode | Half-duplex |
| Frequency Stability | 1.5ppm |
| Modulation System | GMSK |
| Air Baud Rate | 9600/19200 bps Selectable |
| Protocol Type | Transparent/South-/Mac/TT450S |
Physical
| Size (with connector) | 40×30×3mm |
| Weight | 10 g |
| Power Supply | +3.3V ~ +3.6V DC |
| Emission Current | < 2A (2W output power) |
| Received Power | 0.6 W |
| Output Power | 0.5W/1W/2W |
| Operating Temperature | -40℃ to +75℃ |
| Storage Temperature | -50℃ to +85℃ |
Communications
| I/O Interface | LGA 2×30 pin, pin pitch 1.27mm |
| DTE-DCE Interface | 3 × LVCMOS 3.3V |
| Antenna Interface | IPEX female connector |
