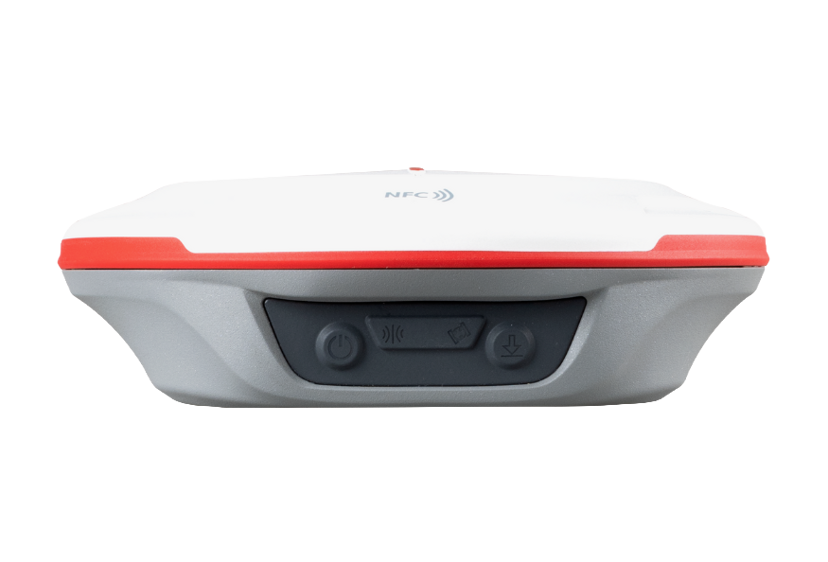

T20 Palm GNSS Receiver
GNSS Receivers
Overview
Small enough to fit in a pocket, T20 is only 48mm thick with the battery and weighs 0.67kg. With SinoGNSS K8 platform and 3rd generation IMU, T20 can adapt to various complex environments and collect accurate data. Powered by a 10,000mA lithium battery, it can stand up for 12 hours. Lighter, Thinner, and Stronger - T20 is specifically designed for land survey, agriculture, machine control, and GIS.
Specifications
Performance
| Channel | 1590 |
| Satellites tracking | GPS: L1C/A, L1C, L2P, L2C, L5; BDS: B1l, B2l, B3l, B1C, B2a, B2b; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6c, E5 AItBOC; QZSS: L1C/A, L2C, L5, L1C; IRNSS: L5; SBAS: L1C/A |
| Signal Re-acquisition | ≤1s |
| Cold Start | ≤45s |
| Hot start | ≤15 s |
| RTK Initialization Time | <10s |
| Initialization reliability | ≥99.9% |
| Internal Memory | 8GB |
| Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz |
| Static and Fast Static | Horizontal 2.5 mm + 0.5 ppm RMS; Vertical 5 mm + 0.5 ppm RMS |
| Signal Baseline RTK | Horizontal 8mm + 1ppm RMS; Vertical 15mm + 1ppm RMS |
| Long Observation Static | 3 mm + 0.1 ppm Horizontal; 3.5 mm + 0.4 ppm Vertical |
| DGPS | ＜0.4m RMS |
| SBAS | Horizontal 0.5 RMS; Vertical 0.8 RMS |
| Standalone | 1.5m 3D RMS |
| Tilt Survey | up to 120° tilt with 2.5cm accuracy |
Physical
| Housing Material | Magnesium aluminum alloy |
| Dimension | 149±1mm(φ), 48±1mm(H) |
| Weight | 670g |
| Working Temperature | -30°C~+65°C |
| Storage Temperature | -40°C~+85°C |
| Humidity | 100% non-condensing |
| Water- & Dustproof | IP67 |
| Shock | Survive a 2m drop onto the concrete |
| Vibration | MIL-STD-810G Method 514.6 procedureⅠ |
| Voltage | 5/9V |
| Power Consumption | RX mode≤1.8W, TX mode≤3.6W |
| Over Current Protection Voltage | 30V, VBUS 9.99V |
| Charging Time | <5h(QC2.0) |
| Working time | up to 20h typically |
Communications
| BT5.0 Dual-Mode BT | |
| Datalink | Tx/Rx with full frequency range from 410-470MHz; Transmit power: 0.5W, 1W, 2W adjustable; Air Baud Rate: 9600 / 19200 / 11000 adjustable; Range: 3-15 km; Protocol type: Transparent/TT450S/South/Mac/SNLonglink |
| Range Pole Interface | Standard 5/8'' UNC female thread |
| Datalink port | TNC |
| USB | Type-C |
| Serial Port | Support serial communication |
| Correction data I/O | RTCM2.X, 3.X, CMR(GPS only), CMR+(GPS only) |
| Position data output | ASCII: NMEA-0183 GSV, RMC, HDT, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK; ComNav Binary update to 20 Hz |
