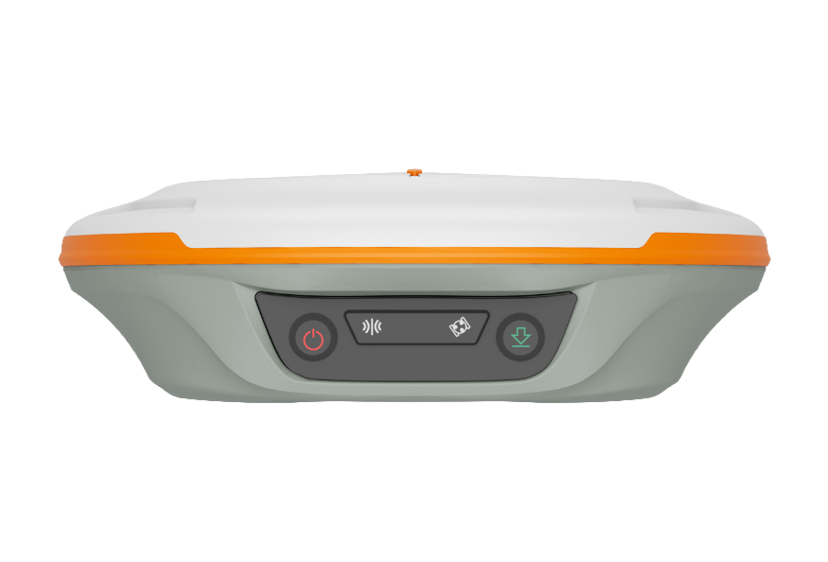

N2 Palm GNSS Receiver
GNSS Receivers
Overview
Slim-line design makes the N2 one of the most compact GNSS receiver: only 48mm and 0.67kg including battery. Compared with a typical GNSS receiver, it is more than 35% thinner and 40% lighter, can be carried, used and operated more easily without fatigue. Lighter, Thinner, and Stronger - N2 is specifically designed for land survey, marine, precision agriculture, machine control, and GIS.
Product Video
Specifications
Performance
| Channel | 1590 |
| Satellites tracking | GPS (L1C/A, L1C, L2P, L2C, L5); BDS (B1l, B2l, B3l, B1C, B2a, B2b); GLONASS (G1, G2, G3); Galileo (E1, E5a, E5b, E6c, E5 AItBOC); QZSS (L1C/A, L2C, L5, L1C); IRNSS (L5); SBAS (L1C/A) |
| Signal Re-acquisition | ≤1s |
| Cold Start | ≤45s |
| Hot start | ≤15s |
| RTK Initialization Time | <10s |
| Initialization reliability | ≥99.9% |
| Internal Memory | 8GB |
| Static and Fast Static | Horizontal 2.5mm + 0.5ppm RMS; Vertical 5mm + 0.5ppm RMS |
| Signal Baseline RTK | Horizontal 8mm + 1ppm RMS; Vertical 15mm + 1ppm RMS |
| Long Observation Static | 3mm + 0.1ppm Horizontal; 3.5mm + 0.4ppm Vertical |
| DGPS | ＜0.4m RMS |
| SBAS | 0.5m Horizontal; 0.8m Vertical |
| Standalone | 1.5m 3D RMS |
| Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz |
| Tilt Survey | up to 120° tilt with 2.5cm accuracy |
Physical
| Housing Material | Magnesium aluminum alloy |
| Dimension | 149±1mm(φ), 48±1mm(H) |
| Weight | 670g |
| Working Temperature | -30°C~+65°C |
| Storage Temperature | -40°C~+85°C |
| Humidity | 100% non-condensing |
| Water- & Dustproof | IP67 |
| Shock | Survive a 2m drop onto concrete |
| Voltage | 5/9V |
| Power Consumption | RX mode≤1.8W, TX mode≤3.6W |
| Over Current Protection Voltage | 30V, VBUS 9.99V |
| Charging Time | <5h(QC2.0) |
| Working time | ≥20h |
Communications
| Serial Port | Support serial communication |
| USB | Type-C |
| Interface | USB TYPE-C |
| Range Pole interface | Standard 5/8'' UNC female thread |
| UHF port | TNC |
| Bluetooth | BT5.0 Dual-Mode |
| Correction data I/O | RTCM 2.X, 3.X, CMR (GPS only), CMR+ (GPS only) |
| UHF | Tx/Rx with full frequency range from 410-470MHz; Transmit power: 0.5W, 1W, 2W adjustable; Air Baud Rate: 9600/19200/11000 adjustable; Range: 3-15km; Protocol type: support Transparent/TT450S/South/Mac/SNLonglink, compatible with all ComNavTech GNSS Receivers |
| Position data output | ASCII (NMEA-0183 GSV, RMC, HDT, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK); ComNav Binary update to 20Hz |
