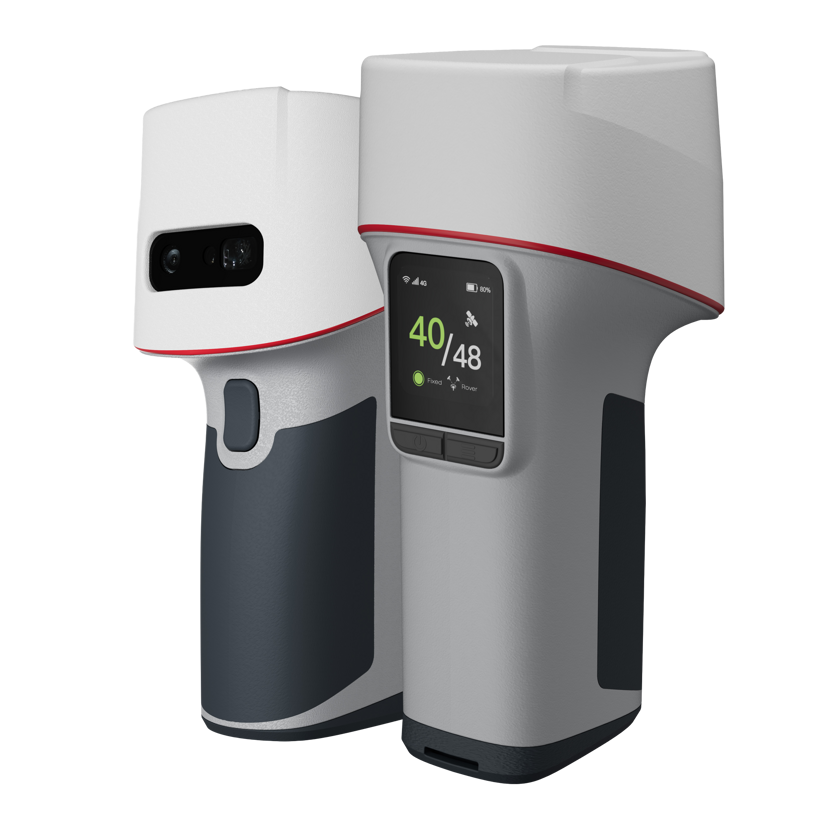

Mercury Laser RTK
GNSS Receivers
Overview
Mercury Laser RTK sets a new standard in surveying with true Pole-Free operation. Powered by the next-generation K9 chip and advanced IMU algorithms, it delivers high-precision measurements without a survey pole or controller, combining laser technology with real-time visualization. The device integrates a geodetic antenna, long-range laser, and HD camera for measurements up to 50 meters with an ergonomic handheld design and touch-screen interface.
Product Video
Specifications
Performance
| Channel | 1590 |
| Satellites tracking | GPS: L1C/A, L1C, L2P, L2C, L5; BDS: B1l, B2l, B3l, B1C, B2a, B2b; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6c, E5 AItBOC; QZSS: L1C/A, L2C, L5, L1C; IRNSS: L5; SBAS: L1C/A; PPP: B2b & HAS; L-Band |
| Signal Re-acquisition | ≤1s |
| Cold Start | ≤30s |
| Hot start | ≤10s |
| RTK Initialization Time | <5s(Baseline≤10km) |
| Initialization Reliability | ≥99.9% |
| Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz |
| Static and Fast Static | Horizontal 2.5 mm + 0.5 ppm RMS; Vertical 5 mm + 0.5 ppm RMS |
| Long Observations Static | Horizontal 3.0 mm + 0.1 ppm; Vertical 3.5 mm + 0.4 ppm |
| Single Baseline RTK | Horizontal 8mm + 1ppm RMS; Vertical 15mm + 1ppm RMS |
| DGPS | ＜0.4m RMS |
| SBAS | Horizontal 0.5m RMS; Vertical 0.8m RMS |
| Standalone | 1.5m 3D RMS |
| Laser Tilt Measurement | ≤3.5cm (5m range, ≤60°Tilt in laser mode) |
Physical
| Housing Material | Aluminium magnesium alloy |
| Dimension | Φ 8.1cm × 7.6cm × 17.1cm |
| Weight | 500g±50g with internal battery |
| Display | 1.1 inch OLED color display |
| Working Temperature | -40 °C~+65°C (-72°F to 117°F) |
| Storage Temperature | -40 °C~+85°C (-72°F to 153°F) |
| Humidity | 100% non-condensing |
| Shock | Survive a 1.5m drop onto the concrete |
| Voltage | 7.2V |
| Li-ion Battery Capacity | 5000mAh |
| Power Consumption | 1.8W |
| Working Time | 15h |
| Interface | Type-C |
| Memory | 4GB |
Communications
| 1 Virtual Serial Port | Baud rates up to 921,600 bps |
| WIFI | 802.11 a/b/g/n, 5GHz |
| Position data output rates | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |
| Bluetooth | V 4.0 protocol, compatible with Windows OS and Android OS |
| 4G Module | B1/B3/B5/B7/B8/B20/B28 |
| Auto-IMU integrated for tilt survey | up to 120°tilt with 2.5 cm accuracy |
| Screen | 1.6-inch color touchscreen, providing intuitive data display and flexible work configuration |
| Correction Data I/O | RTCM2.X, 3.X, CMR(GPSonly), CMR+(GPSonly) |
| Position Data Output | ASCII: NMEA-0183 GSV, RMC, HDT, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, PJK, GGK; ComNav Binary update to 20 Hz |
Laser
| Range | 50m |
| Laser Safety | Class 3R |
| Accuracy (room temperature) | (3-5)mm + 1ppm |
| Measuring Frequency | Classic Value: 3Hz; Maximum Value: 5Hz |
Camera
| Pixel size | 1600*1300 |
| Field of view | 47° |
| Video frame rate | 30 fps |
| Image group capture | Rate: typically 2 Hz, up to 25Hz; Max. capture time: 60s with an image group size of appr. 60MB |
