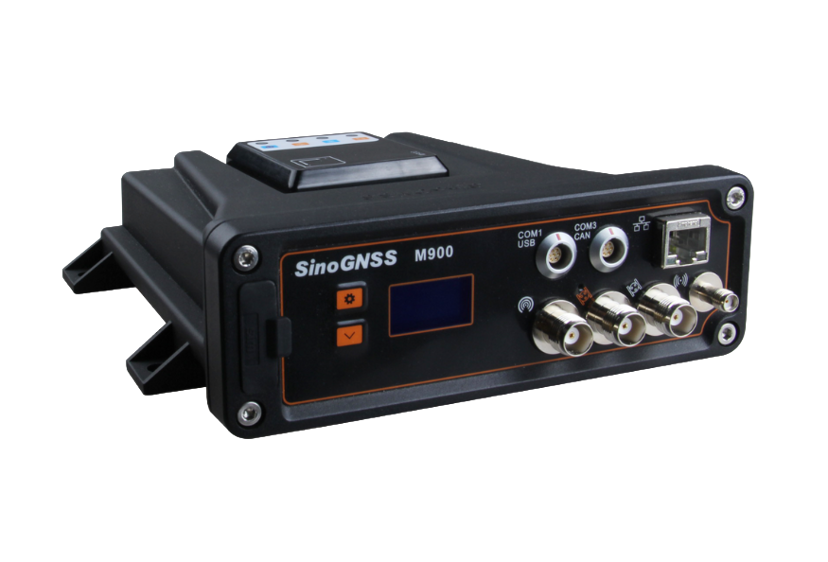

M900 GNSS Receiver
GNSS Receivers
Overview
Featuring advanced QUANTUM technology, integrated navigation, flexible transmission and rugged proof-level, M900 is a wise choice for unmanned systems and navigation applications.
Specifications
Performance
| Channel | 1226 |
| Satellites tracking | GPS: L1C/A, L1C, L2P, L2C, L5; BDS: B1l, B2l, B3l, B1C, B2a, B2b; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6c, E5 AItBOC; QZSS: L1C/A, L2C, L5, L1C; IRNSS: L5; SBAS: L1C/A |
| Cold Start | <50 s |
| Warm start | <45 s |
| Hot start | <15 s |
| Signal Re-acquisition | <1.5 s |
| RTK Initialization Time | <10s |
| Velocity accuracy | 0.03m/s |
| Time accuracy | 20 ns |
| Post Processing | 2.5 mm + 1 ppm Horizontal; 5 mm + 1 ppm Vertical |
| RTK | 8 mm + 1 ppm Horizontal; 15 mm + 1 ppm Vertical |
| DGPS | <0.4m |
| SBAS | 1m 3D RMS |
| Standalone | 1.5m 3D RMS |
| PPP | 10cm Horizontal; 20cm Vertical |
| Heading Accuracy | (0.2/R⁵)° |
| Pitch and Roll | (0.4/R)° |
Physical
| Size (L × W × H) | 185mm x 171mm x 56mm (With connectors) |
| Weight | About 1kg |
| Working Temperature | -40 °C to +75 °C |
| Storage Temperature | -55°C to +85 °C |
| Humidity | 95% no condensation |
| Waterproof & Dustproof | IP68 |
| Shock | Designed to survive a 1m drop onto concrete |
| Power supply | 5V~27V |
| Power consumption | 3W |
Communications
| Bluetooth ® 4.0 | Compatible with Android and Windows mobile OS |
| 4G modules | Support Ntrip protocol |
| UHF modem | 410MHz - 470MHz |
| WIFI | 802.11 a/b/g/n/ac |
| 3 TNC connectors | 1 UHF connector; 2 external GNSS antenna connectors |
| 2 7-pin lemo ports | Standard RS232, CAN, USB2.0 protocol; 1 CAN BUS/COM3/power; 1 USB/COM1/power |
| 1 SMA connector | 4G antenna connector |
| 1 RJ45 connector | Ethernet interface |
| 1 OLED display | Status monitoring |
| 4 LEDs | Power, satellite tracking, differential data, GPRS status |
| Correction data I/O | RTCM 2.X, 3.X, CMR/CMR+ (GPS only) |
| Position data output | NMEA 0183 GSV, RMC, HDT, GGA, GSA, ZDA, VTG, GST; PTNL,PJK; PTNL, AVR; PTNL, GGK; ComNav Binary; BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05, 0x7d-00, 0x7e-00, 0x7f-05; up to 20hz |
