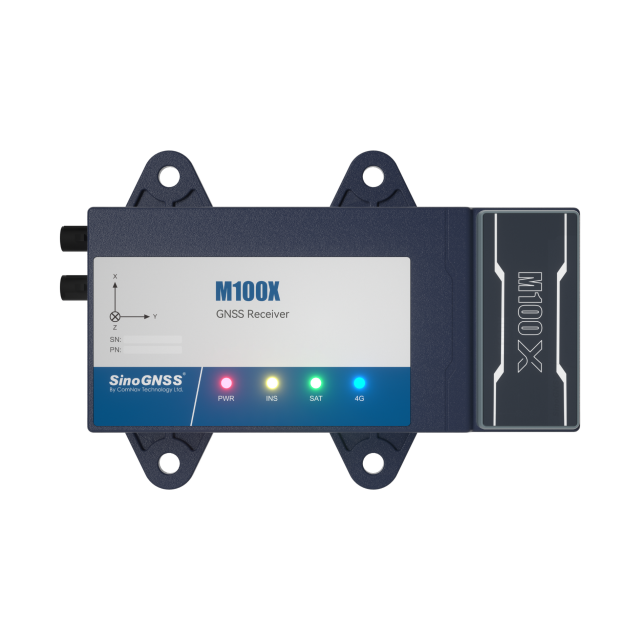

M100X GNSS Receiver
GNSS Receivers
Overview
M100X is a new GNSS+INS receiver for high-accuracy vehicular positioning and heading applications, featuring GNSS positioning module and high-performance IMU module.
Specifications
Performance
| Signal Tracking (Positioning) | GPS: L1C/A, L2C, L2P; BDS: B1l, B2l, B2b, B3l; GLONASS: G1, G2; GALILEO: E1, E5b; QZSS: L1C/A, L2C; SBAS: L1C/A; PPP, L-Band |
| Signal Tracking (Heading) | GPS: L1C/A, L2C, L2P; BDS: B1l, B2b, B3l; GLONASS: G1, G2; GALILEO: E1, E5b; QZSS: L1C/A, L2C; SBAS: L1C/A |
| Single Baseline RTK | 8 mm + 1 ppm Horizontal; 15 mm + 1 ppm Vertical |
| Azimuth | 0.15°/R |
| Roll/Pitch | 0.25°/R |
| Velocity | ≤0.02m/s |
| Gyroscope Measurement Ranges | ±500°/s |
| Gyroscope Zero-point Offset | 2.2°/h(X) 2.7°/h(Y) 1.6°/h(Z) |
| Accelerometer Measurement Ranges | ±8g |
| Accelerometer Zero-point Offset | 0.013mg |
| Standalone | 1.5m 3D RMS |
| Cold Start | ≤30s |
| Hot Start | ≤10s |
| RTK Initialization Time | <5s(baseline≤10km) |
| Signal Re-acquisition | <1s |
| Initialization Reliability | >99.9% |
Physical
| Size | 151.2mm x 103.7mm x 27.9mm |
| Weight | <300g |
| Material | Aluminum Alloy |
| Memory | 8G |
| Working Temperature | -40℃~+75℃ |
| Storage Temperature | -55℃~+85℃ |
| Waterproof & Dustproof | IP67 |
| Voltage | DC9-36V |
| Power Consumption | <5W |
| Drop Test | survive from 1m drop |
Communications
| Correction Data I/O | RTCM2.X, RTCM3.X |
| Data Output | NMEA-0183: GSV, RMC, HDT, GGA, GSA, ZDA, VTG, GST; HEADING, GPYBM; INS Data: 2364&2365 |
| Data Output Rates | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50Hz, 100Hz |
| LAN | 10/100 Mbps |
| 4G Modem | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; LTE-TDD: B38/B39/B40/B41; WCDMA: B1/B2/B4/B5/B6/B8/B19; GSM: B2/B3/B5/B8 |
| Protocols | TCP/IP, Ntrip, JT808 |
| Bluetooth | 4.1 |
| USB | 2.0 |
| LEDs | Power LED×1, INS LED×1, Satellite LED×1, 4G LED×1 |
