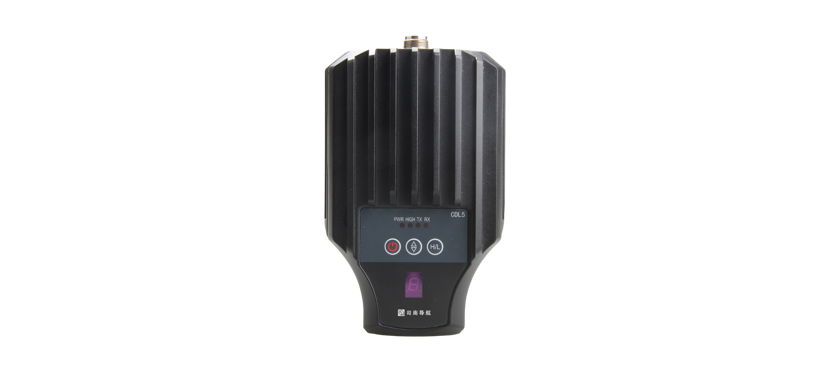

CDL5 UHF External Datalink
GNSS Receivers
Overview
The CDL5 is a three-in-one RX/TX/Repeater UHF external datelink with the entire range of 410-470 MHz, designed for GNSS system applications.
Specifications
General
| Frequency Range | 410-470 MHz |
| Channel Spacing | 12.5 kHz Channel Spacing ± 1.5 ppm Stability |
| Work Mode | Half-duplex |
| Frequency Stability | 1.5ppm |
| Modulation System | GMSK |
| Air Baud Rate | 9600/19200 bps Selectable |
| Protocol Type | Transparent/ South/ Mac/ TT450 |
| Adjacent Channel Rejection Ratio | - 55 dB |
| Forward Error Correction | Yes |
| Sensitivity | -117dBm BER 10-5 |
Physical
| Size (with connector) | 11cm × 18cm × 9.3cm |
| Weight | 1.3 kg |
| Mount | Tripod Bracket, 5/8"-11 Range Pole |
| Operating Temperature | -40℃ to +75℃ |
| Storage Temperature | -50℃ to +85℃ |
| Humidity | 100% no condensation |
| Dustproof and waterproof | IP67, protected from temporary immersion to depth 1m |
| Shock | Designed to survive a 2m drop onto concrete |
| Power Supply | +10V ~ +14.5V DC |
| Transmit Current | 1-2A (2W output power) / 5-6A (30W output power) |
| Received Current | 200mA (0.75W) |
| Transmit Power | 2W/5W/10W/15W/20W/30W |
| Transmit Power Select | Low/High |
Communications
| Data Connector | 1 Serial Port (7-pin Lemo) Baud rates 38400bps (4800 bps to 115200 bps optional) |
| Power Connector | 2-pin Lemo port |
| RF External | 50 Ohm, N-TYPE female |
| User Interface | Power button, Channel button, Power selected button, Digital display |
