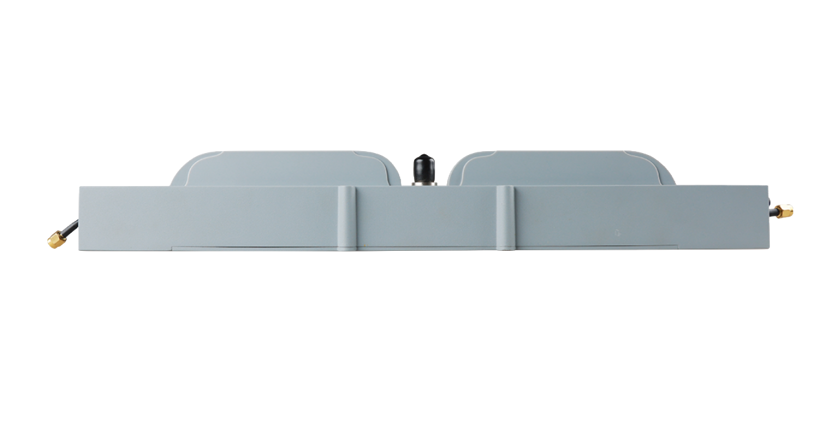

A200 Dual Antenna Heading Receiver

GNSS Receivers

Overview

As a high-precision integrated GNSS positioning and heading receiver, A200 can track all existed and planned constellations, providing high-precision positioning and heading data for users.

Specifications

Performance

Channels	1226
Satellites received	GPS: L1C/A, L1C, L2P, L2C, L5; BDS: B1l, B2l, B3l, B1C, B2a, B2b; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6c, E5 AItBOC; QZSS: L1C/A, L2C, L5, L1C; IRNSS: L5; SBAS: L1C/A
Post Processing Horizontal	2.5 mm + 1 ppm
Post Processing Vertical	5 mm + 1 ppm
Single Baseline RTK Horizontal	8 mm + 1 ppm
Single Baseline RTK Vertical	15 mm + 1 ppm
DGPS	<0.4 m RMS
SBAS	1 m 3D RMS
Standalone	1.5 m 3D RMS
Velocity accuracy	≤ 0.02 m/s (PDOP ≤4)
Heading Accuracy	(0.15/R) °
Roll or Pitch Accuracy	(0.25/R) °
Signal acquisition time	Cold start <30s
RTK initialization time	<10s
RTK initialization reliablity	>99.99%
Signal Reacquisition	<1s

Physical

Dimensions	460mm × 38mm × 58mm
Weight	627g
Housing material	Aluminum-magnesium alloy
Operating Temperature	-30 to +65°C
Storage Temperature	-30 to +65°C
Dustproof and waterproof	IP67
Humidity	100% fully sealed, anti-condensation
Shock	Survive a 2 m drop onto concrete
Power supply	DC 4.5~12V
Supports	Auto power-on
Power consumption	2.6W (typical value)
Communication interfaces	1 serial port and 1 USB port (7-pin Lemo connector)

Communications

Datalink	Tx/Rx with full frequency range from 410-470 MHz; Transmit power: 0.5-2 W adjustable; Baud rates: 19.2kbps, 9.6kbps; Transmission protocol: transparent transmission, TT450S/SOUTH/MAC (Super-long range module is optional)
Positioning data output rate	1Hz, 2Hz, 5Hz, 10Hz, 20Hz
Correction I/O Protocol	RTCM2.x, RTCM3.x, CMR (GPS only), CMR+ (GPS only)
Data I/O Protocol	ASCII: NMEA-0183 GGA, GSA, GSV, RMC, HDT, VHD, ZDA, VTG, GST, GLL; PTNL, PJK; PTNL, AVR; PTNL, GGK; ComNav Binary; BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05, 0x7d-00, 0x7e-00, 0x7f-05
